• Yealink W80B

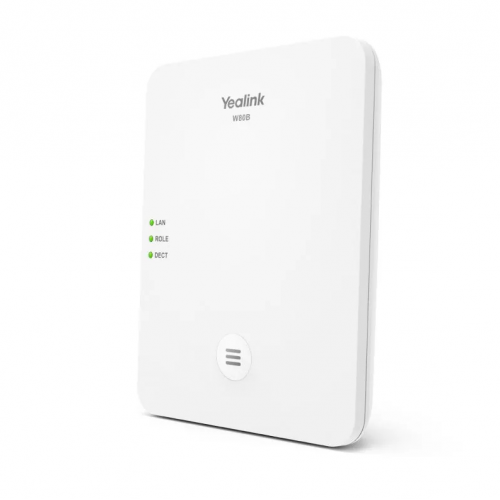

Yealink W80B

  • Brend: Yealink
  • Šifra proizvoda: W80B
  • Dostupnost: Po narudžbi
482,50€

Oznake: Yealink, IP Phones

  • Sloboda kretanja uz prelazak između baznih stanica bez smetnji i prekidanja poziva
  • Do 100 istovremenih poziva
  • Do 30 baznih stanica
  • Do 100 slušalica
  • Do 100 SIP korisničkih računa
  • Podrška za LDAP/Udaljeni imenik
  • Podrška za Xsi Imenik
  • Pokrivanje DECT signalom u radijusu svake bazne stanice: do 50m u zatvorenom prostoru, do 300m na otvorenom prostoru
  • Yealink DECT tehnologija je temeljena na CAT-iq2.0, koji omogućuje visoku kvalitetu VoIP zvuka (wideband), kao i na primjene gdje se zahtjeva nizak bitrate. Nije kompatibilno s DECT uređajima drugih proizvođača (bazne stanice, slušalice itd.)
  • Podrška za Opus codec
  • Podrška za PoE
  • Podržane slušalice Yealink W59R, W56H i W53H (verzije x.83.0.90 i novije), konferencijski DECT telefon CP930W (verzija 87.83.0.60 i novije) i stolni DECT telefon W41P (verzija 66.84.0.115 i novije)


Yealink IP DECT sustav s više baznih stanica (Multi-Cell) sastoji se od DECT Manager jedinice W80DM i baznih stanica W80B. ovaj sustav donosi skalabilnost i povećanu mobilnost poslovnih korisnika, te omogućuje vrhunsku kvalitetu komunikacije bez smetnji i prekidanja poziva uz slobodu kretanja po velikim prostorima koji su pokriveni DECT signalom. Jednostavno postavljanje sustava zadovoljiti će razne scenarije upotrebe, uključujući skladišta, hotele, prodavaonice, uredske prostore, bolnice i sve druge veće prostore.


Phone Features

  • Sync over the air (Seamless handover and roaming)
  • Up to 100 simultaneous calls
  • Up to 30 base stations
  • Up to 8 WB (4 active handsets) calls per base
  • Up to 8 NB calls per base
  • Up to 100 handsets
  • Up to 100 VoIP accounts
  • Up to 2 simultaneous calls per handset
  • Call hold, call transfer, 3-way conference
  • Switching between calls
  • Call waiting, mute, silence, DND
  • Caller ID with name and number
  • Anonymous call, Anonymous call rejection
  • Call forward (always/busy/no answer)
  • Speed dial, voicemail, redial
  • Message Waiting Indication (MWI)
  • Music on hold (server-based)
  • Local phonebook for up to 100 entries per handset
  • Remote phonebook/LDAP/XML phonebook
  • Phonebook search/import/export
  • Call history (all/missed/placed/received)
  • Reset to factory, reboot
  • Keypad lock, emergency call
  • Broadsoft directory, BroadSoft call log
  • Broadworks feature key synchronization
  • Shared Call Appearance (SCA)
  • XML browser
  • IPUI registration
  • User access level


Management

  • Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
  • Auto-provision with PnP
  • Handset upgrade: OTA (Over-The-Air)
  • Configuration: browser/phone/auto-provision
  • Trace package and system log export


Audio Features

  • Full-duplex speakerphone
  • Hearing Aid Compatibility (HAC) compliant
  • DTMF
  • Wideband codec: Opus, AMR-WB (optional), G.722
  • Narrowband codec: AMR-NB (optional), PCMU, PCMA, G.726, G.729, iLBC
  • VAD, CNG, AGC, PLC, AJB


Network Features

  • SIP v1 (RFC2543), v2 (RFC3261)
  • SNTP/NTP
  • VLAN (802.1Q and 802.1P)
  • 802.1x, LLDP
  • STUN Client (NAT Traversal)
  • UDP/TCP/TLS
  • IP assignment: static/DHCP
  • Support outbound proxy server backup


Security

  • Open VPN
  • Transport Layer Security (TLS1.0/TLS1.1/TLS1.2)
  • HTTPS (server/client), SRTP
  • Digest authentication
  • Secure configuration file via AES encryption
  • Support SHA256/SHA512/SHA384


DECT

  • Frequency bands: 1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US)
  • DECT Standards: CAT-iq2.0


Interface

  • 1 x RJ45 10/100M Ethernet port
  • Power over Ethernet (IEEE 802.3af), Class 1


Physical Features

  • Indoor Range: 20m~50m (The ideal distance is 50m)
  • Outdoor Range: 300m (in ideal conditions)
  • Wall mountable
  • Three LED indicators on W80DM/W80B:
    • 1 x DECT LED
    • 1 x Role LED
    • 1 x LAN (Power Indicator & Network Status) LED
  • External Yealink AC adapter: AC 100-240V Input and DC 5V/1.2A Output
  • Color: Pearl White
  • Dimension: 130 mm x 100 mm x 25.1 mm
  • Operating humidity: 10~95%
  • Operating temperature: 0~+40°C (+32~104°F)


Package Features

  • Package content:
    • W80DM/W80B
    • Expansion Screws
    • Quick Start Guide
    • Power Adapter (optional)
  • Qty/CNT: 10 PCS
  • Giftbox size: 174 mm x 180 mm x 63 mm
  • Carton meas: 375 mm x 336 mm x 187 mm
  • N.W: 2.56 kg
  • G.W: 3.13 kg
