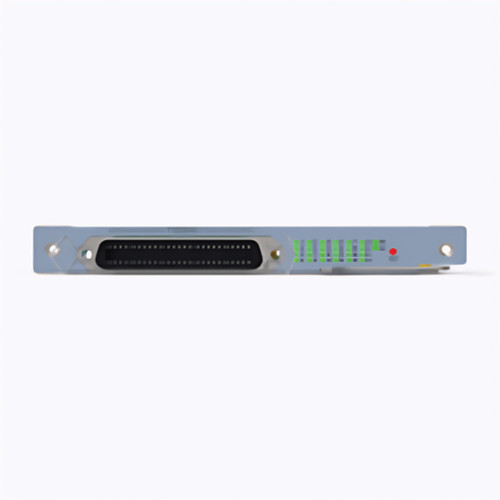

OpenVox MAG2100 24 FXS modul

Specifications

OpenVox MAG2100 is a multifunctional analog gateway designed for seamless connection between IPPBX systems, fax machines, analog phones, and telecom operators. The MAG2100 supports 48/72/96 FXS interfaces with a modular design, enabling flexible addition or removal of module boards as needed. It provides RJ21 and RJ45 interface modules, 2 Gigabit Ethernet ports, 1 Gigabit SFP port, and 1 Console port.

With excellent concurrent voice and fax processing capacity, strong performance, and high stability, the MAG2100 delivers high-quality communication services for service providers, enterprises, call centers, and residential communities.

The MAG2100 Series supports a wide range of codecs including G.711A/U, G.723.1, G.729A, G.722, G.726, iLBC, OPUS, AMR, and AMR-WB. It uses the standard SIP protocol and is fully compatible with leading VoIP platforms, IPPBX systems, and SIP servers such as Asterisk, Issabel, 3CX, FreeSWITCH, BroadSoft, and VOS VoIP platforms.

Technical Specifications

• Product: MAG2100

• FXS Ports: 48 / 72 / 96

• Port Type: RJ45 / RJ21

• Console: 1 × RS232 (RJ45)

• Ethernet Ports: 2 × 10/100/1000Mbps

• Network Interface: 1 × 1000Mbps SFP

• Weight (with packaging): 4.5 kg

• Dimensions (with packaging): 440 × 44.5 × 335 mm

• Maximum Power Consumption: 120W

• Power Supply: 100~240V AC (Universal)

• Optional Power Supply: -48V ~ -60V DC

• Redundant Power Supply: Supported

• Operating Temperature: 0°C ~ 45°C

• Operating Humidity: 10% ~ 90% (Non-condensing)

• Storage Temperature: -20°C ~ 70°C

• Ring Load: 2 REN, up to 3 km on 24 AWG line

• Certification: CE & FCC

Software & Platform

• Operating System: Linux OS

Physical Interfaces

• 48/72/96 FXS with RJ21

• 1 × Console RS232 (RJ45)

• RJ45 / RJ21

• 1 × WAN, 10/100/1000Mbps (RJ45)

• 1 × LAN, 10/100/1000Mbps (RJ45)

• 1 × 1000Mbps SFP

Voice & Fax

• Supported Codecs: G.711A/U, G.723.1, G.729A, G.722, G.726, iLBC, OPUS, AMR, AMR-WB

• Comfort Noise Generation (CNG)

• Modem / POS support

• Adaptive (Dynamic) Jitter Buffer

• Programmable Gain Control

• DTMF Modes: Signal / RFC2833 / Inband

• T.38 Fax / Pass-through

• Echo Cancellation (G.168), up to 128 ms

Call Features

• Call Waiting

• Blind Transfer

• Attended Transfer

• Call Forward (Busy, No Reply, Unconditional)

• Warm/Immediate Hotline

• Message Waiting Indicator (MWI)

• SIP registration to multiple servers

• Call Hold

• Do Not Disturb (DND)

• 3-Way Conference

• Speed Dial

FXS

• Connectors: RJ45 & RJ21

• Dial Modes: DTMF & Pulse (10/20 PPS)

• Caller ID: DTMF / FSK

• Max Cable Length: 3 km

• Reversed Polarity

• Programmable Call Progress Tone

Software Features

• Hunting Group

• Web ACL / Telnet ACL

• Action URL

• PPPoE

• OpenVPN

• Digitmap

• Prefix-based Routing Rules

• Caller/Called Number Manipulation

• VEX (Advanced Peer-to-Peer Calls)

VoIP Protocols

• SIP v2.0 (UDP/TCP), RFC3261

• SDP, RTP (RFC2833), RFC3262, RFC3263, RFC3264, RFC3265, RFC3515, RFC2976, RFC3311

• RTP/RTCP, RFC2198, RFC1889

• IPv4 & IPv6

• Outbound Proxy

• RFC2806 TEL URI

• RFC3581 NAT (rport)

• VLAN 802.1P/802.1Q

• RFC4028 Session Timer

• DNS SRV / A / NAPTR Query

• NAT: STUN, Static/Dynamic NAT

Maintenance & Management

• SNMP v1/v2/v3

• Auto Provisioning

• Web-based Configuration

• Backup & Restore

• Firmware Upgrade via Web

• CDR

• TR-069

• IPoE

• Syslog (Emerg, Alert, Critical, Error, Warning, Notice, Info, Debug)

• Ping / Traceroute Test

• Network Capture

• NTP & Daylight Saving Time

• IVR-based Local Maintenance

• Cloud-based Management
